Memory Initialization Methods

Questions on how to initialize a ROM or RAM come up quite often on FPGA discussion boards and forums. Several methods can be used to initialize memory in RTL, during implementation, and post-implementation when targeting Xilinx FPGA devices. Some of the methods are covered in this blog.

Verilog "initial" block with $readmemb or $readmemh
Memories can be initialized using $readmemb or $readmemh system tasks with a memory initialization file (.mif) (download complete example here):

reg [DATA_WIDTH-1:0] mem[0:2**ADDR_WIDTH-1];

initial begin
    $readmemh("mem_init_vlog.mif", mem, 0, 255);
end

XST  has two different Verilog parsers depending on the target device. The old parser is used for Virtex5/Spartan3 and older devices. For Virtex6/Spartan6 and newer devices, the new parser will be used. The old parser has a few restrictions on the memory initialization:
  • The entire memory array must be initialized. For example, if the memory has 256 words, all 256 words must be explicitly initialized. Otherwise the initialization will be ignored with this warning message: WARNING:Xst:2319 - "rom_vlog.v" line 21: Signal mem in initial block is partially initialized. The initialization will be ignored.
  • Make sure the .mif file does NOT have any unnecessary white spaces (especially "tab") anywhere. Or it will issue some obscure error message like this: ERROR:Xst:2354 - "rom_vlog_mif.v" line 18: Value 262025260 found at line 256 is not hexadecimal in call of system task $readmemh.
  • Starting address (@hh), Verilog comments (// or /* */), and multiple values per line are not supported in the .mif file. Or as you guessed it, it will issue other weird errors.
It is very unlikely that these restrictions will removed from the old parser because workarounds exist by following the rules above. The good news is that the new Verilog parser supports all valid formats in a memory initialization file as describe in Verilog LRM. i.e. the restrictions no longer exist in the new Verilog parser. An even better news is that the switch "-use_new_parser yes" can be manually added to the XST command line to enable the new parser for older devices if you insist on using full features of the memory initialization file.

VHDL functions
Memory can be initialized in VHDL by using a function at signal declaration. Functions like sin(), cos()in the IEEE math_real library are supported by XST for initializing memories. The code snippet below shows how to generate a look up table with a cosine wave (download complete example here):

constant MEM_DEPTH : integer := 2**ADDR_WIDTH;
type mem_type is array (0 to MEM_DEPTH-1) of signed(DATA_WIDTH-1 downto 0);

function init_mem return mem_type is
    constant SCALE : real := 2**(real(DATA_WIDTH-2));
    constant STEP  : real := 1.0/real(MEM_DEPTH);
    variable temp_mem : mem_type;
begin
    for i in 0 to MEM_DEPTH-1 loop
        temp_mem(i) := to_signed(integer(cos(2.0*MATH_PI*real(i)*STEP)*SCALE), DATA_WIDTH);
    end loop;
    return temp_mem;
end;

constant mem : mem_type := init_mem;

VHDL with external data files
XST User Guide has VHDL examples of initializing block RAMs with external data files. It's listed here so that you are aware of this option. The XST UG should always be your first stop for coding styles and techniques. I would like to point out two things highlighted in red in the code snippet below (download complete example here):
  •  The "file" declaration in XST UG uses VHDL-87 syntax. The code snippet below uses VHDL-93 syntax because that is the default VHDL starndard XST uses.
  •   The second argument for the "read" function needs to be a bit_vector. std_logic_vector or signed types are not supported by the "read" function in IEEE std.textio package.

constant MEM_DEPTH : integer := 2**ADDR_WIDTH;
type mem_type is array (0 to MEM_DEPTH-1) of signed(DATA_WIDTH-1 downto 0);

impure function init_mem(mif_file_name : in string) return mem_type is
    file mif_file : text open read_mode is mif_file_name;
    variable mif_line : line;
    variable temp_bv : bit_vector(DATA_WIDTH-1 downto 0);
    variable temp_mem : mem_type;
begin
    for i in mem_type'range loop
        readline(mif_file, mif_line);
        read(mif_line, temp_bv);
        temp_mem(i) := signed(to_stdlogicvector(temp_bv));
    end loop;
    return temp_mem;
end function;

constant mem : mem_type := init_mem("mem_init_vhd.mif");


Verify Memory Content in Synthesized Netlist

There are a couple of ways to verify that the memory is correctly initialized by the synthesis tool:

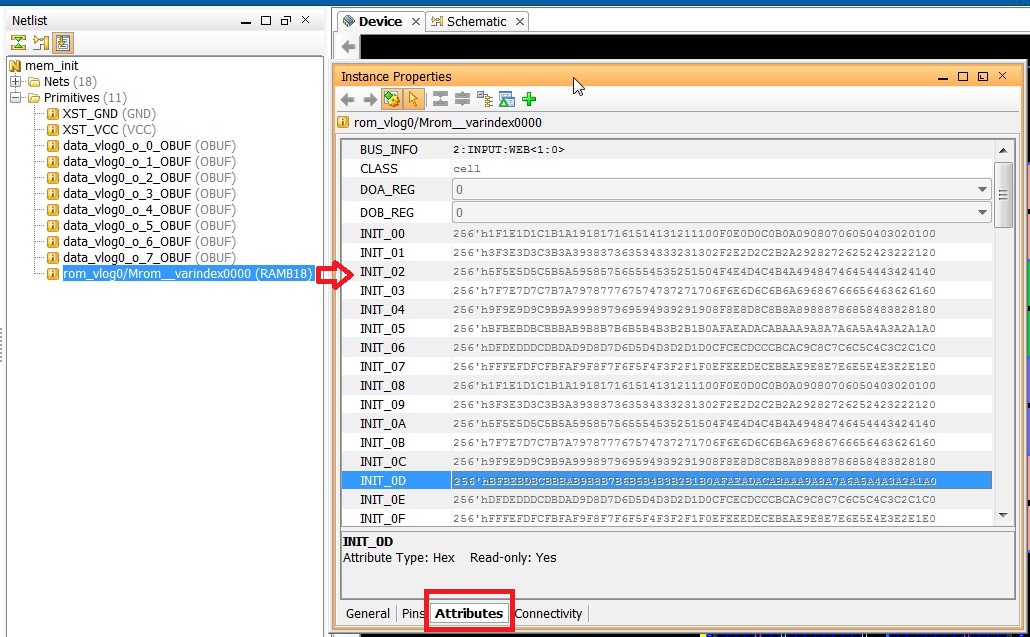

  • The values of INIT_xx attributes of the block RAM can be examined in PlanAhead by opening the netlist design in PlanAhead, selecting the instance for the memory, and selecting the "Attributes" tab of the "Instance Properties" window.

  • A post-synthesis simulation model can be generated for the synthesized netlist in Project Navigator or by using netgen tool. This simulation model can be used in the existing testbench to check if the initialization data made into the netlist correctly. The waveform below shows the correct outputs from the ROMs created in the Verilog .mif (counter) and VHDL function (sine wave) methods.
